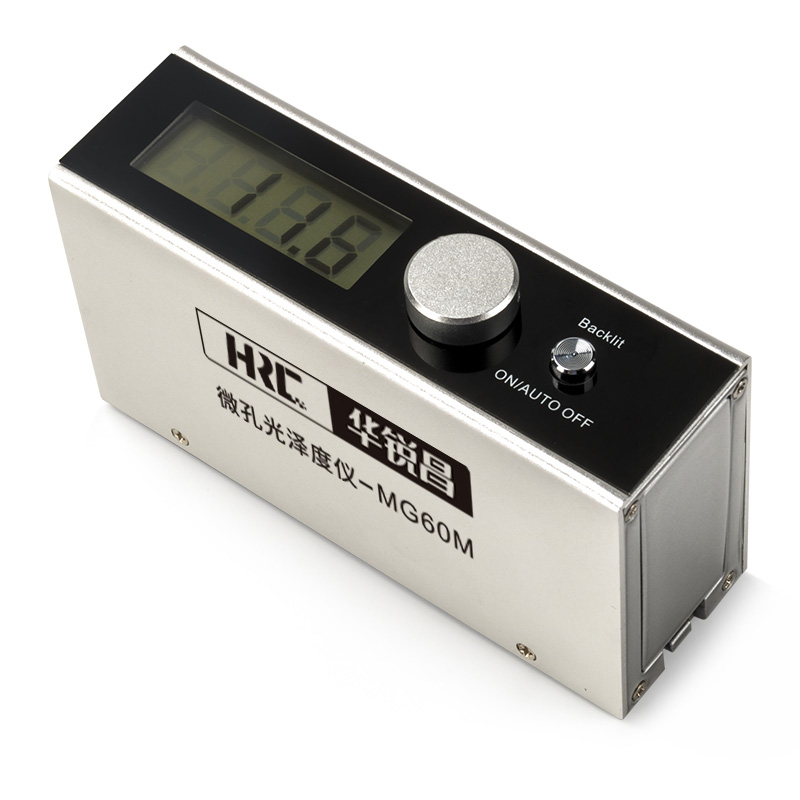

MG60M Microporous Glossmeter is a high-precision, miniaturized portable glossmeter manufactured in accordance with ISO-2813 standard, which can be widely used in the measurement of gloss value on the surface of the coating with curved surface or special irregular shapes, and has the integration of easy-to-use, stable performance and accurate measurement, and is suitable for the measurement of surface gloss of the measured surfaces with complex shapes, such as mechanical parts, jewelry, handicrafts, plastic tubes, hardware decorations and test samples. It is suitable for measuring the surface gloss of mechanical parts, jewelry, handicrafts, plastic pipes, hardware decoration, test samples and other surfaces with complex shapes. (Also suitable for flat surface gloss measurement)

Instrument parameters:

Measuring range: 0~199.9Gs (gloss unit)

Stability: less than earth 0.4Gs/30Min; display value error: less than earth 1.5Gs

Power supply: 2 x 7 batteries

Optical class size: 1*2mm; measuring port size: 2*4mm

Use conditions: ambient temperature: 0 degrees ~ 40 degrees; relative humidity; not more than 85

Main unit size: (L) 120mmx (W) 35 mmx (H) 70 mm;

Weight of main unit: 200g; Weight of standard plate: 45g

Packing weight: 1000 grams

Packing: EVA sponge

Functions: manual calibration, automatic measurement, automatic shutdown after standby for a long time

Screen: LCD backlight function

Instrument features:

◆ Ultra-compact design can be placed in the pocket, more portable, is currently the smallest volume, lightest weight gloss meter.

◆ Imported chip, ultra-low power consumption of 0.5MA, the normal use of time up to one month, standby time of 180 days or more, about 10,000 data can be measured.

◆ Special moisture-proof process can let you rest assured in a variety of harsh environments.

◆ Instant measurement, no waiting time, stable value, no drift, easy to measure quickly.

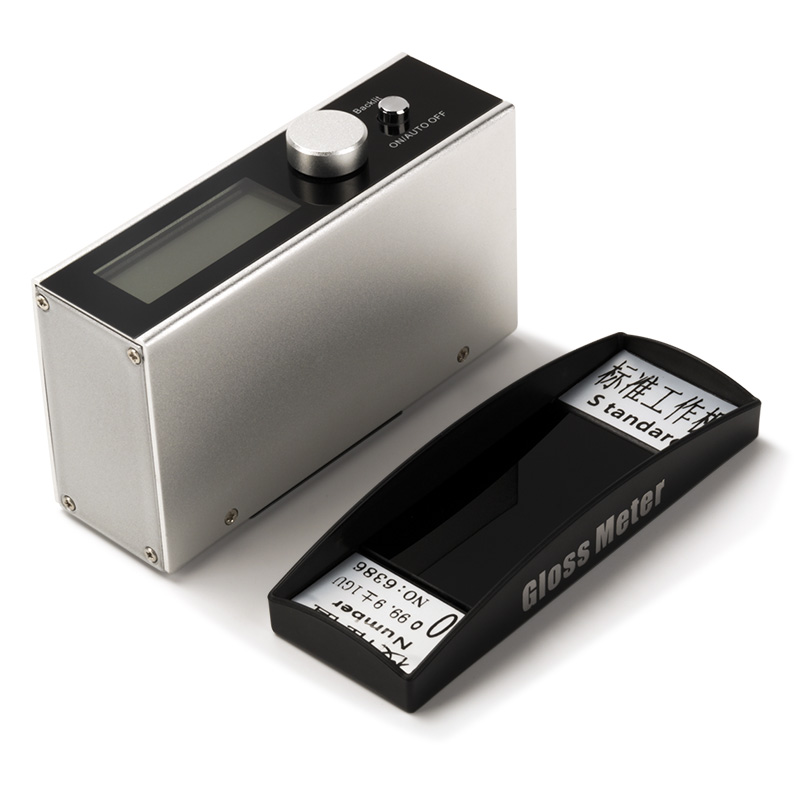

◆ Quartz crystal standard plate: accurate, wear-resistant, gloss value is stable without change.

◆ Accurate to one decimal point, higher precision.

◆ K9 coated optical glass lens, better stability.

◆ LED white light source, lumen 6.0-7.0lm, stable luminescence, durable, no need to replace.

◆ Special customized aging bracket test bracket, to ensure data stability.

◆ Original zero calibration technology, double calibration.
