GlossMeter

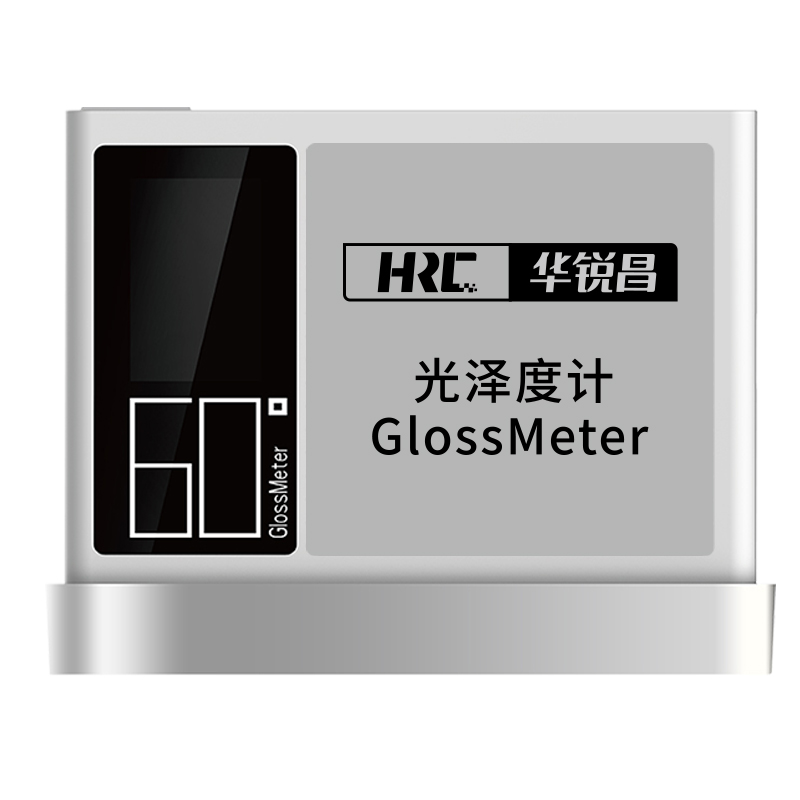

Glossmeter MG6-Ad (advanced version)

MG6-Ad meets JJG696-2015 power-on auto-calibration, automatic measurement, manual measurement, support Bluetooth link APP

Order online

Card type gloss meter MG6-Ad meets the JJG696-2015 first-class work gloss meter requirements, the instrument boot automatically calibrated, no need to manually calibrate, support for continuous measurement, manual measurement, free switching; ultra-long endurance of a single charge can be continuously measured 5000 times, can meet the bamboo and wood, paper, plastics and other surfaces of the gloss measurement.

Technical parameters:

Product Model: MG6-Ad

Calibration mode: automatic

Measuring Angle: 60°

Test caliber: 23*7mma

Measuring range: 0-1200GU

Graduated value: 0.1GU

Measurement stability*0. 1±0.1%

Battery capacity: single charge can be continuous measurement 5000 times

Screen: full-color display (135 * 240) 1.14 inches

Interface: USB

Operating temperature: 0-40

Humidity: less than 85%, no condensation

Accessories: USB cable, lanyard, manual, calibration standard board, cleaning cloth

Weight: 80g

Size: 84mm*70mm*17mm

Parameter comparison:

Product Model

MG6-Bt

MG6-St

MG6-Ad

calibration mode

automation

Measuring Angle

60°

Test metrics

Glossiness (GU)

Test Caliber

23*7mm

measuring range

0-200GU

0-300GU

0-1200GU

indexing value

1GU

0-100:0.1GU;>100:1GU

Measurement Stability

1

±0.5 ±0.5%

0.1 / 0.1%

measuring time

Less than 1 second

battery capacity

5000 measurements

10000 measurements

15000 measurements

screen

Full color display, 135*240, 1.14 inches

connector

USB

USB,Bluetooth

operating temperature

0-40℃

humidity level

Less than 85%, no condensation

replacement (parts)

USB cable, lanyard, manual, calibration standard plate, cleaning cloth

weights

80g

116g

sizes

84mm*70mm*17mm

Functional Features

◆ Small - Weighs only 80 grams, the size of a business card.

◆ Accurate - Promise to pass the measurement certification smoothly.

◆ Fast - Single measurement time is less than 1S.

◆ Long - a charge can be measured 15000 times, small body, big energy.

◆ Continuous Measurement - Continuous measurement at any time, free your hands.

◆ Automatic calibration - No need to manually calibrate, you can measure when you turn on the device.

◆ Intelligent magnetic base - Anti-dirt, calibrate at any time to ensure long-term accuracy.

◆ Connect to WeChat - Can connect to WeChat mini program for more functions.
