AG60D gloss meter is currently the highest cost-effective all-metal a gloss meter, the advantage of a small body, hand portable, the implementation of standards: IS0281/GB9966/GB9754; in line with the JJG696 (specular gloss meter measurement and verification procedures) a level of work machine requirements.

Measurement characteristics:

Applicable to aviation aluminum, paint and coating, hardware and electronics, paper printing, plastic film, stone ceramics, leather and rubber, home furnishing and building materials, electroplating and polishing, glass mirror, wood crafts, automotive maintenance, molding mold.

Parameter specification:

Measuring area: 10*20mm

Measuring caliber: 14*28mm

Measuring range: 0-1000GU

Volume size: 110*64*32mm

Host weight: 180g

Related standard: IS02813 ASTMD523 GB9754

Projection angle: 60°

Power supply: 1.2-1.5AA (No. 5) rechargeable or alkaline battery (can be measured more than 10,000 times)

Operating temperature: 0-45℃ , 0-85%RH (no condensation)

Storage temperature: -20-60℃, 0-85%RH (no condensation)

Weight of main unit: 180g

Standard box size: 67*46*13mm

Box size: 160*105*55mm

Measuring time: 0.2s

Measurement mode: digital display automatic measurement without keypad

Power on time: 0.5s, power off time: 1s

Calibration mode: power on manual calibration

Shell material: full metal

Standby time: 2min

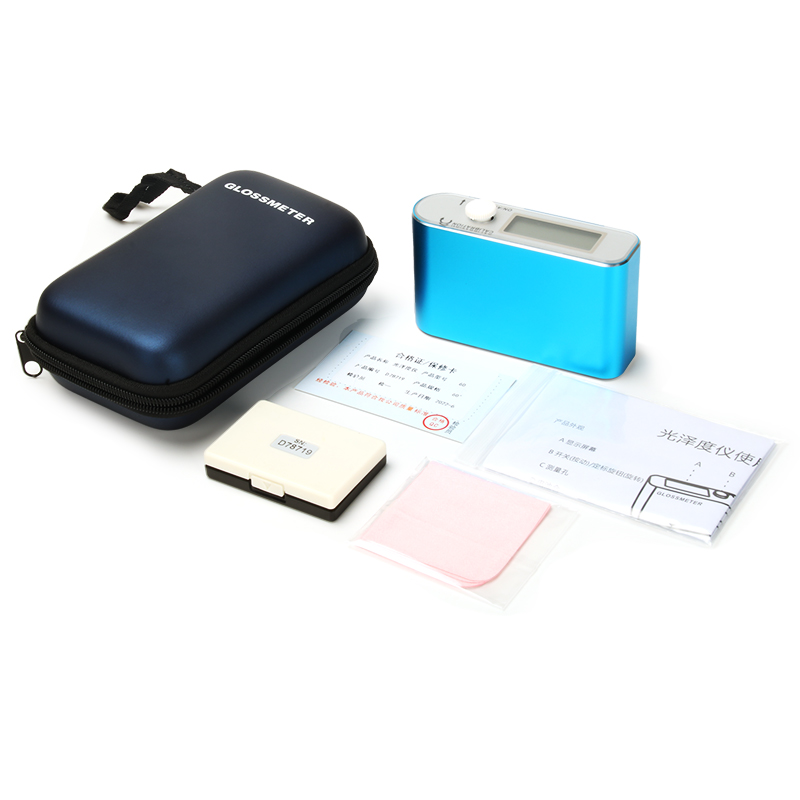

Standard accessories: EVA box, host, standard board box, 1 battery, warranty card certificate of conformity, manual, wipe cloth.

Instrument features:

1、Measuring caliber adopts anti-scratch design, which can measure samples with plane size ≥20X28mm.

2、Measurement of the bottom of the smooth rounded corners arc design, to ensure that the measurement of the sample is not scratched.

3, EVA box shockproof, drop-proof, dustproof, storage is more convenient, better protection of the instrument.

4、Metal body to create a classic, blue sense of technology, has a unique metal luster and touch, beautiful and durable.

5, super power-saving design, ultra-long standby, long-lasting life, can be 60 hours uninterrupted connection measurement use.

6, 1 section of No. 5 battery can be measured continuously for more than 60 hours to measure about 10000 data.

7, measurement results LED large-print display, read data at a glance, LED backlight design, day and night can be clearly read.

8, a key to start manual calibration, automatic measurement, no need to press the key to measure, measure the degree of large screen display, data at a glance.

9, a small body big wisdom, instrument measurement error is small, stable value, no drift, that is put that measurement is convenient and quick.
