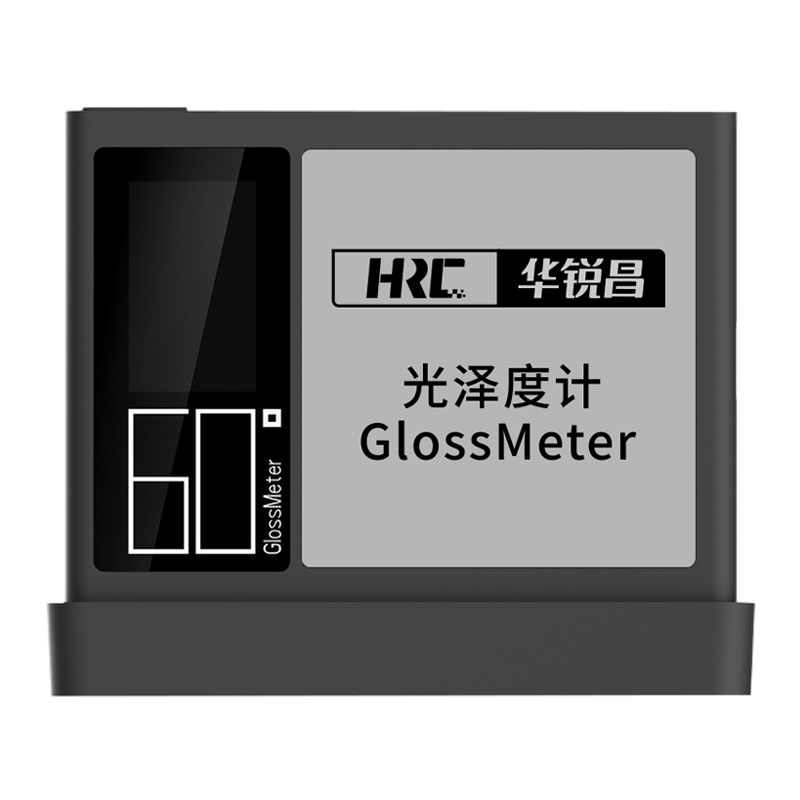

Card type gloss meter MG6-Bt meets the requirements of JJG696-2015 first-class working gloss meter, automatic calibration aut
Card type gloss meter MG6-Bt meets the JJG696-2015 first-class work gloss meter requirements, the instrument boot automatically calibrated, no need to manually calibrate, support for continuous measurement, manual measurement, free switching; ultra-long endurance of a single charge can be continuously measured 5000 times, can meet the bamboo and wood, paper, plastics and other surfaces of the gloss measurement.
Technical parameters:
Product Model: MG6-Bt
Calibration mode: automatic
Measuring Angle: 60°
Test caliber: 23*7mma
Measuring range: 0-200GU
Graduated value: 1GU
Measurement stability* 1±1%
Battery capacity: single charge can be continuous measurement 5000 times
Screen: full-color display (135 * 240) 1.14 inches
Interface: USB
Operating temperature: 0-40 ℃
Humidity: less than 85%, no condensation
Accessories: USB cable, lanyard, manual, calibration standard board, cleaning cloth
Weight: 80g
Size: 84mm*70mm*17mm
Parameter comparison:
Product Model | MG6-Bt | MG6-St | MG6-Ad |
calibration mode | automation | ||
Measuring Angle | 60° | ||
Test metrics | Glossiness (GU) | ||
Test Caliber | 23*7mm | ||
measuring range | 0-200GU | 0-300GU | 0-1200GU |
indexing value | 1GU | 0-100:0.1GU;>100:1GU | |
Measurement Stability | 1 | ±0.5 / ±0.5% | 0.1 / 0.1% |
measuring time | Less than 1 second | ||
battery capacity | 5000 measurements | 10000 measurements | 15000 measurements |
screen | Full color display, 135*240, 1.14 inches | ||
connector | USB | USB,Bluetooth | |
operating temperature | 0-40℃ | ||
humidity level | Less than 85%, no condensation | ||
replacement (parts) | USB cable, lanyard, manual, calibration standard plate, cleaning cloth | ||
weights | 80g | 116g | |
sizes | 84mm*70mm*17mm |
Functional Features
◆ Small - Weighs only 80 grams, the size of a business card.
◆ Accurate - Promise to pass the measurement certification smoothly.
◆ Fast - Single measurement time is less than 1S.
◆ Long - a charge can be measured 5000 times, small body, big energy.
◆ Continuous Measurement - Continuous measurement at any time, free your hands.
◆ Automatic calibration - No need to manually calibrate, you can measure when you turn on the device.
◆ Intelligent magnetic base - Anti-dirt, calibrate at any time to ensure long-term accuracy.
◆ Connect to WeChat - Can connect to WeChat mini program for more functions.
