◆Product Introduction

Standard light source is widely used in various industries in the field of color management, used to accurately calibrate the color deviation of goods, because different light sources have different radiation energy, when irradiated to the goods, it will show a different color, color management in industrial production, although the quality inspector has been carefully compared with the color of goods, but because of the environment of the light source is not standardized or inconsistent with the light source used by the customer, the color of goods is different when seen by different light, it is difficult to determine the color difference of goods. The color difference of the goods is difficult to determine, and the customers will complain or even return the goods because the color difference is out of the standard range, which seriously affects the goodwill of the company.

To effectively solve the above problems, the most useful method is to check the color of goods, must be in the same light source and under controlled conditions, such as international standards often use standard artificial daylight (CIE D65 - Artificial Daylight 6500K color temperature) as a standard light source to assess the color of the goods, especially at night time, the use of a standard light source to detect the color deviation of goods is particularly important. It is especially important to use the standard light source to detect the color deviation of goods during night shift.

◆the application of industry

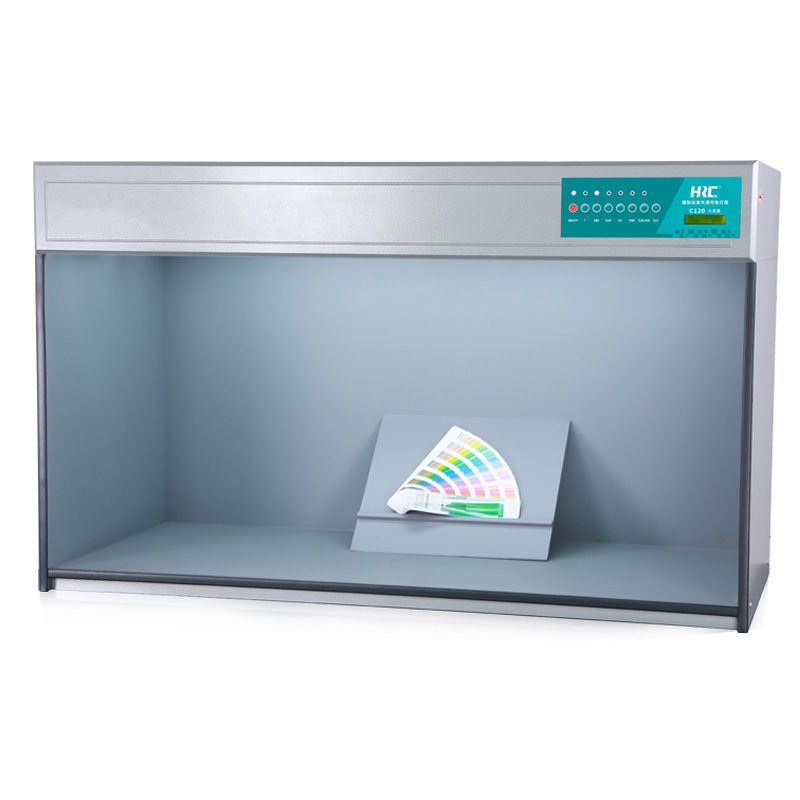

HRC C120 color assessment cabinet can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries..

◆Advantages

1. Display the usage time, name and number of switches for each light source;

2. Streamlined seamless design, beautiful and generous, no light leakage, opaque;

3. Computerized light touch button to switch the light source at will, the light box can automatically save all the record content after power failure;

4. Adopting the original imported SMD components, with the function of testing the effect of homochromaticity and heteroscedasticity;

5. Separate records and display the name of each light source, the use of time and switch times;

6. The name of the light source can be changed, increase or replace the light source more convenient;

7. Light source automatic switching, can light up a variety of light sources alone or at the same time, no heat (no need to dissipate heat), high luminous efficiency;

8. No need to warm up, no screen flash, can ensure fast and reliable evaluation of the color;

9. Oversize volume and internal frame for easy observation of large items;

◆the specification parameters

Model: C120

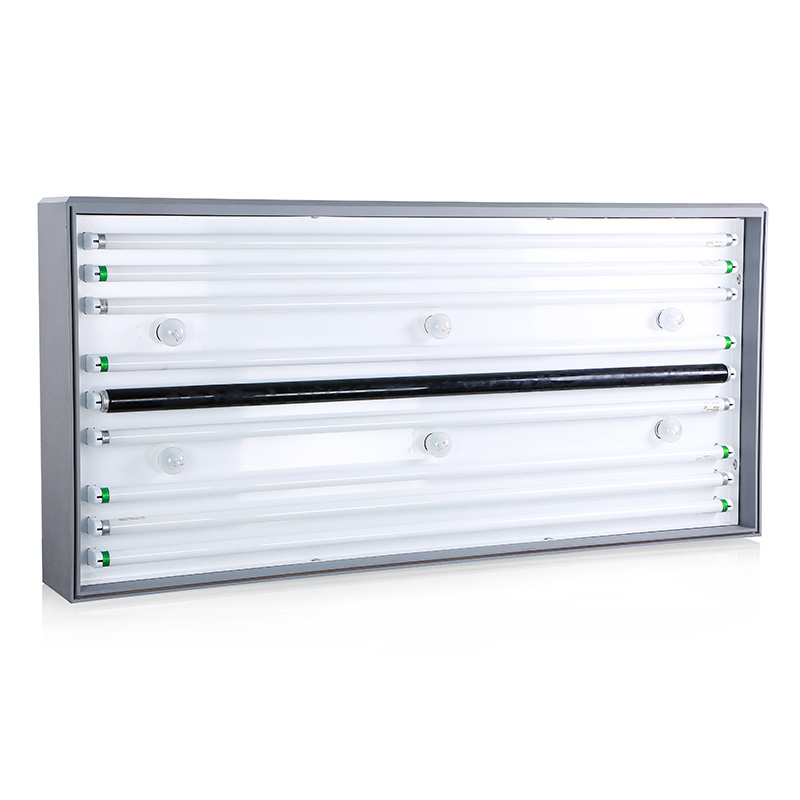

Configuration: D65, TL84, F, UV, CWF, TL83,  （Six light sources）

Weight: 61Kg

Dimension: (WxDxH): 1310x600x800mm

◆Light source configuration

Optional accessories: light source diffusion board, 45 degrees standard sample table, spare lamp box
