Product Brief Description:

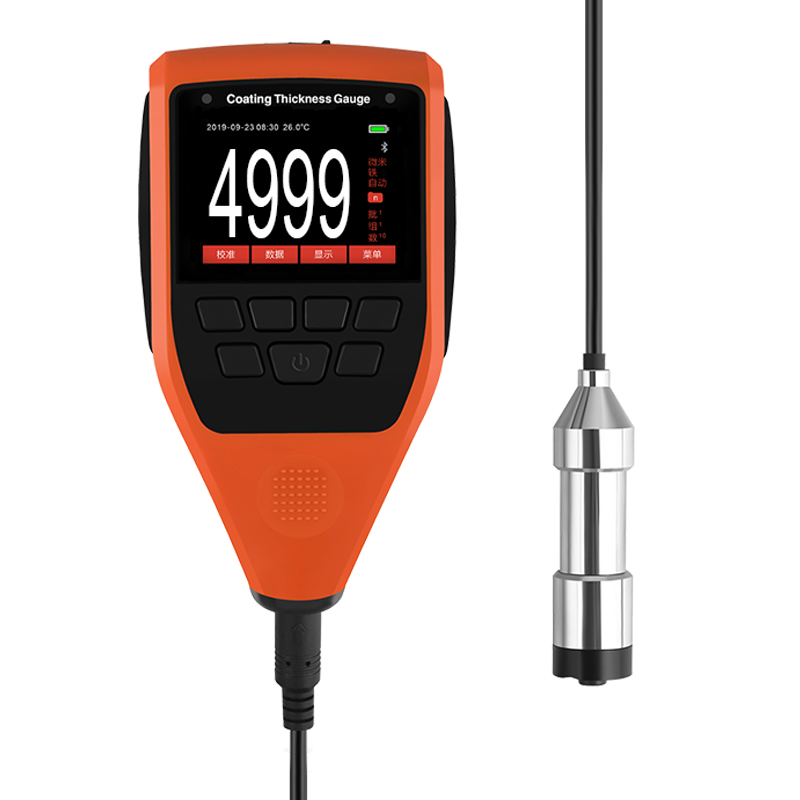

HRC850B thickness gauge can non-destructively measure the thickness of non-conductive cladding on metal surfaces, as well as the thickness of non-ferromagnetic metal cladding on the surface of ferromagnetic metals (e.g., iron, nickel and cobalt, etc.), and its specific uses include the measurement of the thickness of paint or galvanized layer on the surface of iron and stainless steel, and the measurement of the thickness of paint or plastic film on the surface of aluminum and copper.

HRC850B built-in magnetic induction and eddy current effect integrated probe, the maximum range of 2000μm, the highest resolution 0.1μm.

HRC850B  anti-interference ability is very strong, can work in the more complex electromagnetic field environment; measurement, the user only need to quickly fit the probe end of the surface of the measured object, in the probe to the internal contraction of the instrument in the process, the instrument can automatically distinguish the properties of the substrate and measure the thickness of the coating (plating) layer, and the measurement results can be sent to the cell phone APP by Bluetooth in real time. in addition, the instrument contains a large-capacity memory. During the measurement process, the instrument automatically counts and records the measurement results. The recorded data can be transferred to a computer via USB cable.

HRC850B has a simple standardized menu interface and powerful data processing capability, which can display multiple statistical values or statistical graphs, and at the same time, it can indicate and alert the over-limit situation. The instrument also incorporates AI technology, adding features such as environmental self-adaptation and self-protection. The realization of many advanced technologies and concepts greatly enhances the user's sense of human-computer interaction experience.

Functions and technical parameters:

Model: HRC850B

Probe position: built-in

Measuring principle: “Iron: electromagnetic induction, non-iron: eddy current effect”.

Measuring range: FN dual-purpose type (Fe: 0~5000μm) (NFe: 0~3000μm)

Accuracy: “±(3%+2μm)≤3000μm”, “±(5%+2μm)>3000μm”.

Resolution: 0.1μm (0~99.9μm); 1μm (≥100μm)

Unit: micron μm, millimeter mm, mil mil, inch inch

Calibration mode: zero calibration, multi-point calibration

Statistical values: “Number of data, maximum value, minimum value, average value”, “Sample standard deviation, coefficient of variation, number below the limit value, number above the limit value”.

Statistical graphs: Curve graph, bar graph, trend graph

Storage capacity: 10*13*10 measurement values

Trigger mode: mechanical trigger, trigger force 0.4~0.8N

Minimum substrate: convex surface 5mm

Radius of curvature: concave 25mm

Minimum measurement area: 15mm in diameter

Minimum substrate thickness: “Ferrous: 0.20mm, Non-ferrous: 0.03mm”.

Maximum measurement speed: 2 readings/sec.

Display: 2.4-inch color screen

Bluetooth and APP: Yes

Operating environment: “Temperature:-10~+50℃; Humidity:20~90%RH(non-condensing)”.

Storage environment: “Temperature:-20~+60℃; Humidity:20~90%RH(non-condensing)”.

Power supply: 2 x #5 1.5V alkaline batteries; 2 x #5 1.2V rechargeable batteries

Protection grade: IP40

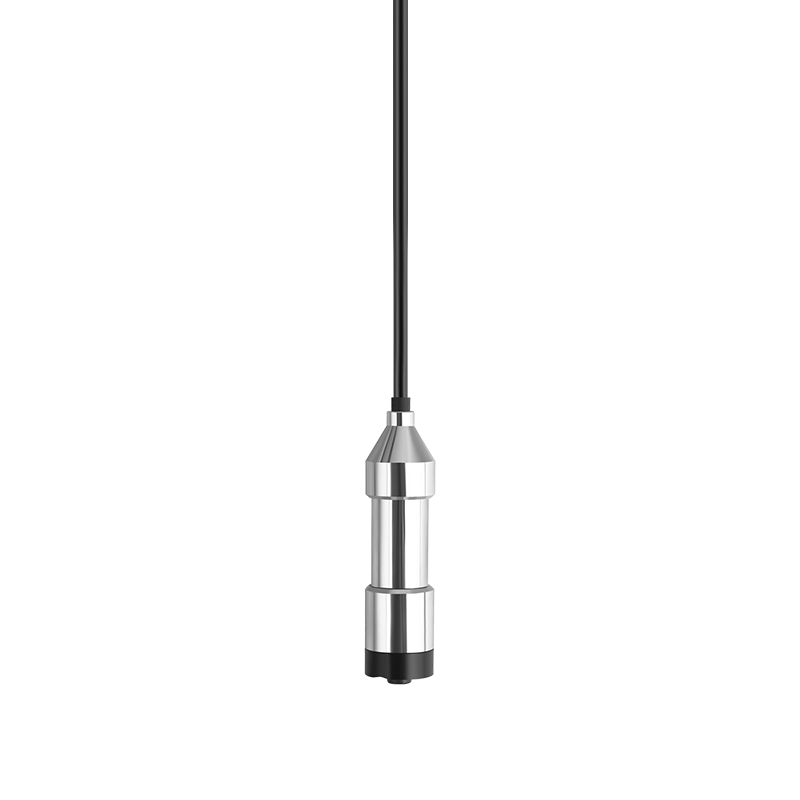

Dimension: 146*76*32mm “Wire:Φ3.5*1000mm, Probe:Φ17*67mm”.

Main body: 146*76*32mm

Shell material: “Main body: ABS, probe: stainless steel”.

Weight: “Main unit: about 135g (without battery), probe: about 163g”.

Product features:

- Ruby wear-resistant probe

- 2.4-inch large color screen

- With Bluetooth and cell phone APP

- Automotive or universal mode

- Resolution up to 0.1μm

- Accuracy ±(3%+2μm) (F2.0 ,N3.0 probe)

- Multiple ranges available

- Statistical analysis of data

- Standardized menu interface

- Displays graphs, bar graphs, or trend graphs.

- Record data and transfer to PC

- Support zero calibration and multi-point calibration

- Built-in probe optional (HRC830A)

- Maximum measurement speed 2 times/second

- Automatic screen brightness

- Automatic screen brightness Automatic screen rotation

- Volume adjustable

- Red over-limit alarm, blue and green status indication

- Auto power off

- Battery protection

Industry applications: automotive paint thickness testing, shipbuilding, electroplating anodizing, metal rust treatment, film thickness testing, hardware parts processing and so on...

Warning: Prohibit private disassembly; strictly prevent strong electricity, static shock!
